TIL How to Select Merge with Ecto.Query

Published Monday, August 19, 2019

Here’s the scenario: you’re working with Elixir and Ecto, and you need to retrieve data from a table plus maybe a field or two from an unassociated table. In the past, whenever I ran into this, I’d spin up something I wasn’t totally satisfied with - maybe updating the schema(s), breaking it up into multiple queries, or building a multi-select statement if I was feeling fancy.

Happily, today I learned there’s a better way. You can accomplish the same end result in a single query expression with Ecto.Query#select_merge/3.

Let’s run through an example to see it in action.

Setup

Say you work at a school with an admissions department, and you’ve been tasked with displaying an event log showing all the events related to a given admission, organized into three columns: 1) date, 2) action taken, and 3) who the action was taken by.

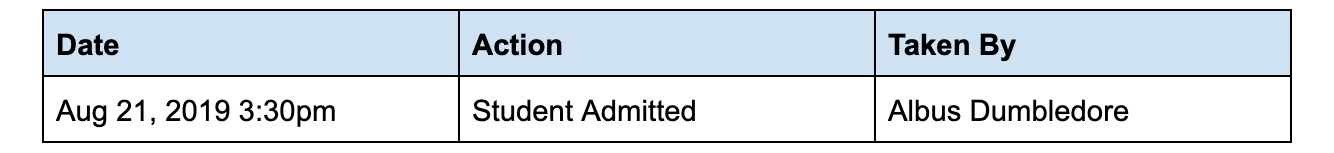

Event log table

To start with, we have an AdmissionEvent schema that looks like this:

defmodule Registrar.Tracking.AdmissionEvent do
  use Ecto.Schema

  schema "admission_events" do
    field(:action, :string)
    field(:admission_id, :integer)
    field(:admitter_uuid, Ecto.UUID)
    field(:occurred_at, :naive_datetime)
  end
end

…and a User schema that looks like this:

defmodule Registrar.User do
  use Ecto.Schema

  schema "users" do
    field(:uuid, Ecto.UUID)
    field(:full_name, :string)
  end
end

The problem here is the admitter’s full name lives on the users table, which currently isn’t associated with the admissions_events table. So if we did a straight-forward select query, we’d end up with the admission events we need to populate the table, but not the admitters’ full names.

defmodule Registrar.Tracking.AdmissionEvent do
  use Ecto.Schema
  import Ecto.Query, only: [from: 2]

  alias Registrar.Tracking.AdmissionEvent

  schema "admission_events" do
    field(:action, :string)
    field(:admission_id, :integer)
    field(:admitter_uuid, Ecto.UUID)
    field(:occurred_at, :naive_datetime)
  end

  def for_admission(query \\ AdmissionEvent, admission) do
    from(ae in query,
      where: ae.admission_id == ^admission.id,
      order_by: [desc: ae.occurred_at]
    )
  end
end

Taking our query function for a spin in console:

iex(1)> admission = Repo.get(Admission, 1)
iex(2)> AdmissionEvent.for_admission(admission) |> Repo.all()
[
  %Registrar.Tracking.AdmissionEvent{
    __meta__: #Ecto.Schema.Metadata<:loaded, "admission_events">,
    action: "Student Admitted",
    admission_id: 3,
    admitter_uuid: "7edd4d7f-a790-41f9-b4ef-16f1dc3b33ea",
    id: 1,
    occurred_at: ~N[2019-07-29 02:22:18]
  }
]

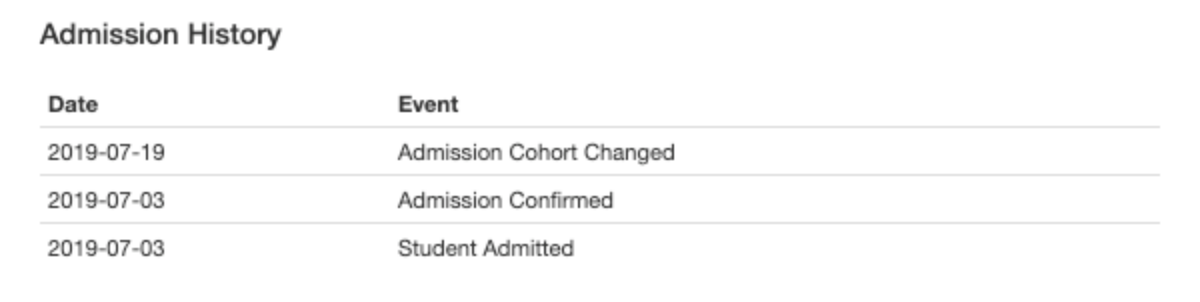

Event log missing name

So, how do we want to go about getting the full name? We’ve got lots of options to choose from, but for this post, we’ll compare two: one folks might reach for first (adding an association and preloading data) and one we’ll hopefully reach for more often moving forward (select merge).

Option 1: Add an Association and Preload the Data

If we associate the users and admissions_events tables, then we can preload the associated User struct and read the full name from it.

defmodule Registrar.Tracking.AdmissionEvent do
  use Ecto.Schema
  import Ecto.Query, only: [from: 2]

  alias Registrar.Tracking.AdmissionEvent
  alias Registrar.User

  schema "admission_events" do
    field(:action, :string)
    field(:admission_id, :integer)
    field(:admitter_uuid, Ecto.UUID)
    field(:occurred_at, :naive_datetime)
    # New association
    belongs_to(:admitter, User, foreign_key: :uuid)
  end
end

defmodule Registrar.User do
  use Ecto.Schema

  alias Registrar.Tracking.AdmissionEvent

  schema "users" do
    field(:uuid, Ecto.UUID)
    field(:full_name, :string)
    # New association
    has_many(:admission_events, AdmissionEvent)
  end
end

Trying out our new association in the console:

iex(1)> admission = Repo.get(Admission, 1)
iex(2)> events = AdmissionEvent.for_admission(admission) |> Repo.all() |> Repo.preload(:admitter)
[
  %Registrar.Tracking.AdmissionEvent{
    __meta__: #Ecto.Schema.Metadata<:loaded, "admission_events">,
    action: "Student Admitted",
    admission_id: 3,
    admitter: %Registrar.User{
      __meta__: #Ecto.Schema.Metadata<:loaded, "users">,
      id: 1,
      name: "Albus Dumbledore",
      uuid: "7edd4d7f-a790-41f9-b4ef-16f1dc3b33ea"
    },
    admitter_uuid: "7edd4d7f-a790-41f9-b4ef-16f1dc3b33ea",
    id: 1,
    occurred_at: ~N[2019-07-29 02:22:18]
  }
]
iex(3)> event = List.first(events)
iex(4)> event.admitter.name
"Albus Dumbledore"

This approach gets the job done, but it’s a little heavy. We only need the admitter’s full name, so why retrieve an entire User struct? You can also see how this pattern could lead to a super cluttered User schema. Right now it has many admission_events, but soon it could have many application_events, interview_events, billing_events, etc.

Option 2: ✨ Select Merge ✨

Ecto.Query#select_merge/3 gives us an option that’s much more succinct and precise. Check out this slickness:

defmodule Registrar.Tracking.AdmissionEvent do
  use Ecto.Schema
  import Ecto.Query, only: [from: 2]

  alias Registrar.User
  alias Registrar.Tracking.AdmissionEvent

  schema "admission_events" do
    field(:action, :string)
    field(:admission_id, :integer)
    field(:admitter_uuid, Ecto.UUID)
    field(:occurred_at, :naive_datetime)

    ###### STEP ONE #######
    #  Add Virtual Field  #
    #######################
    field(:admitter_name, :string, virtual: true)
  end

  def for_admission(query \\ AdmissionEvent, admission) do
    from(ae in query,
      where: ae.admission_id == ^admission.id,
      order_by: [desc: ae.occurred_at],

      #### STEP TWO ####
      #  Join on User  #
      ##################
      join: u in User,
      on: ae.admitter_uuid == u.uuid,

      ############ STEP THREE #############
      #  Select Merge into Virtual Field  #
      #####################################
      select_merge: %{admitter_name: u.full_name}
    )
  end
end

Trying out select merge in the console:

iex(1)> admission = Repo.get(Admission, 1)
iex(2)> AdmissionEvent.for_admission(admission) |> Repo.all()
[
  %Registrar.Tracking.AdmissionEvent{
    __meta__: #Ecto.Schema.Metadata<:loaded, "admission_events">,
    action: "Student Admitted",
    admission_id: 3,
    admitter_name: "Albus Dumbledore",
    id: 1,
    occurred_at: ~N[2019-07-29 02:22:18]
  }
]
iex(3)> event = List.first(events)
iex(4)> event.admitter_name
"Albus Dumbledore"

By adding a virtual field and populating it with select_merge, we end up with a much lighter-weight solution. We get exactly the data we need without adding any new associations, keeping our schemas decoupled. Plus we have a pattern to follow that’s a little more extensible moving forward, should we need to introduce event logs for different types of events.

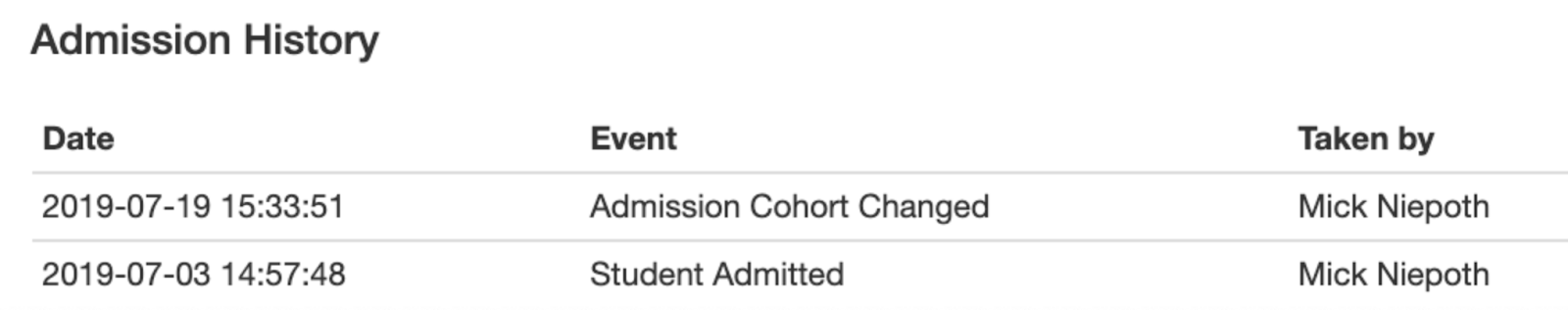

Event log table with full name

Summary

Ecto.Query#select_merge/3 allows us to populate a virtual field directly within a select query, giving us all kinds of flexibility when it comes to designing schemas and composing queries.

10/10 Would compose again.
